SPK® precision tools for hard turning

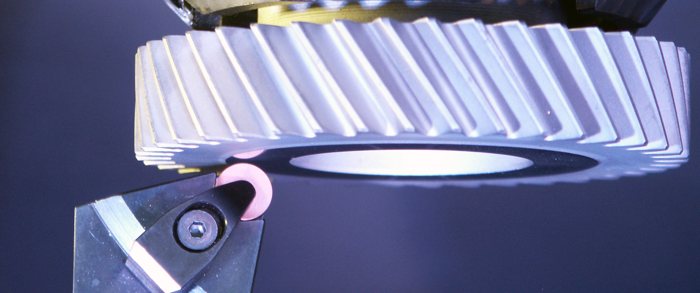

Hard turning with SPK® IKS-PRO Mini for small and System S3 for large incircles
Now it’s possible to always have the right tool for every hard turning job and meet the very high demands on position and shape tolerances as well as surface qualities thanks to the clamping systems developed by SPK®. Used together with SPK® cutting ceramics, the clamping systems achieve the tightest tolerances with complete process reliability.

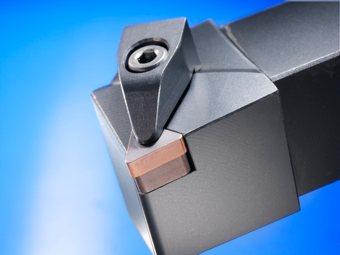

SPK® IKS-Pro Mini clamping system for small incircles (= 6.35 mm)
SPK® IKS-PRO Mini is a newly developed clamping system based on the IKS-PRO. IKS-PRO’s proven notch geometry has been enhanced to meet the special needs of hard turning using solid inserts with a 9.52 mm incircle. The form-fit and force-fit connection helps the insert return to the insert seating and provides extremely stable and secure clamping during hard turning. The cutting forces that act upon the insert and clamping system during hard-fine machining are optimally distributed across the entire insert seating and base. This makes IKS-PRO Mini the clamping system of choice for achieving the tightest tolerances with complete process reliability for continuous to slightly/heavily interrupted cuts. Moreover, IKS-PRO Mini excels with its simple, fast and practical handling, ensuring the reproduction of the highest demands in quality even in daily use.

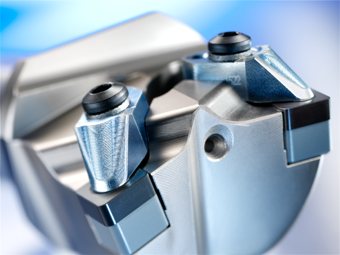

SPK® S3 carrier tool and clamping system for large incircles (= 12.7 mm)
Hard turning jobs with long machining times and high cutting data require precision tooling solutions that offer maximum process reliability with minimal maintenance effort. The structural design and the material selection of the SPK® S3 clamping system have been developed precisely to meet this requirements profile. The system offers the highest process reliability with minimal maintenance effort for hard turning using solid PCBN inserts with a 12.70 mm incircle. The S3 clamping system gets its special properties from ODC Force clamping technology, its structural design and the use of modern material combinations. The optionally available base in a high temperature-resistant material design prevents expansion and stops the insert from digging into the seating. This ensures maximum clamping stability and optimum dimensional accuracy of the workpieces while maintaining a long tool life.
